grade 2 titanium vs grade 5
Dec 10, 2025
Composition and Type: CP vs. Alloy
Titanium Grade 2: The Workhorse of Commercially Pure Titanium
Grade 2 Titanium is one of the four grades of Commercially Pure (CP) titanium. It is often called the "workhorse" of the CP grades because it offers a great balance of strength, ductility, and corrosion resistance. It is essentially pure titanium, with very small amounts of other elements like oxygen and iron.
Key Feature: Excellent formability and weldability.
Titanium Grade 5: The High-Strength Alloy (Ti-6Al-4V)
Grade 5 Titanium is the most widely used titanium alloy in the world. Its special properties come from the addition of 6% Aluminum (Al) and 4% Vanadium (V). These elements significantly increase the material's strength, making it ideal for high-stress applications.
Type: Alpha-Beta Alloy (Ti-6Al-4V)
Key Feature: Exceptionally high strength-to-weight ratio.
| Titanium Grade 2 (CP) | Titanium Grade 5 (Ti-6Al-4V) | |
|---|---|---|
| Alpha-Beta Alloy | ||
| 345 MPa (50,000 psi) | 895 MPa (130,000 psi) | |
| Very High (Roughly 2.5x Stronger) | ||
Applications for Titanium Grade 2
Grade 2 is chosen when high corrosion resistance and easy fabrication (bending, shaping, welding) are more important than extreme strength. It is cost-effective for large-scale industrial use.
Heat exchangers, condensers, and piping systems due to its superior resistance to oxidizing media.
Components exposed to saltwater.
Building facades and decorative elements.
Tubing and vessels.
Applications for Titanium Grade 5 (Ti-6Al-4V)
Grade 5 is the material of choice for critical, high-performance parts where a high strength-to-weight ratio is essential. It is the workhorse of the aerospace and medical fields.
Aircraft engine components, airframe parts, and landing gear.
Orthopedic implants (hip and knee replacements) and surgical tools.
High-performance engine parts and racing components.
Bicycle frames and golf club heads.
Grade 2 vs Grade 5 titanium
Choose Grade 2 if: You need a material that is easy to form, weld, and offers excellent corrosion resistance, and high strength is not the primary requirement. It is the more economical choice.
Choose Grade 5 if: You need the highest possible strength and lightest weight for a critical, structural component, and the higher cost is justified by the performance gains.
In short, Grade 2 is for industrial reliability and easy manufacturing, while Grade 5 is for cutting-edge performance and strength.
: Seamless and welded tubing in commercial and aerospace grades (Gr1, Gr2, Gr5, Gr7, Gr9, Gr12), suitable for heat exchangers, condenser tubes, and piping systems.
: Round bars, hex bars, and square bars in hot-rolled, forged, and cold-drawn conditions, available in various diameters and lengths.

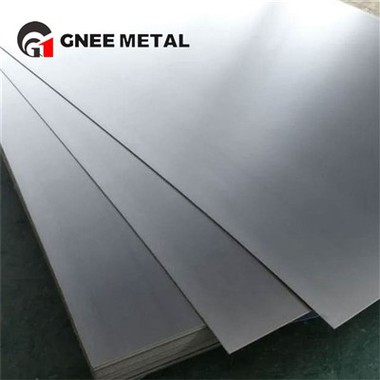

: Plates, sheets, and strips in standard and custom dimensions, ideal for pressure vessels, chemical processing, and marine applications.

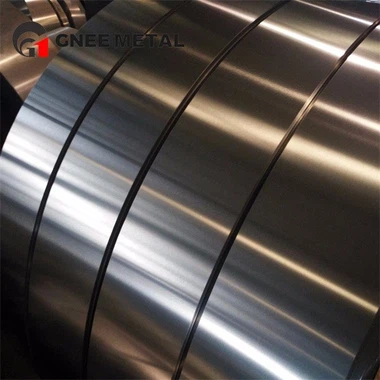

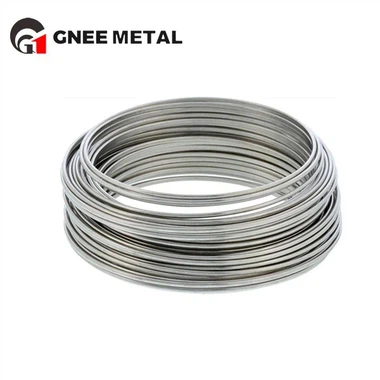

: Fine wire for welding, fasteners, and medical applications, alongside ultra-thin foil for specialized industrial uses.
: Custom-engineered components, fittings, flanges, fasteners, and intricate parts machined from titanium billets, bars, or plates with tight tolerances.
For quotes, technical specifications, or to discuss your project requirements for titanium tubes, bars, plates, sheets, wire, foil, or custom CNC machined components, please contact our team.
